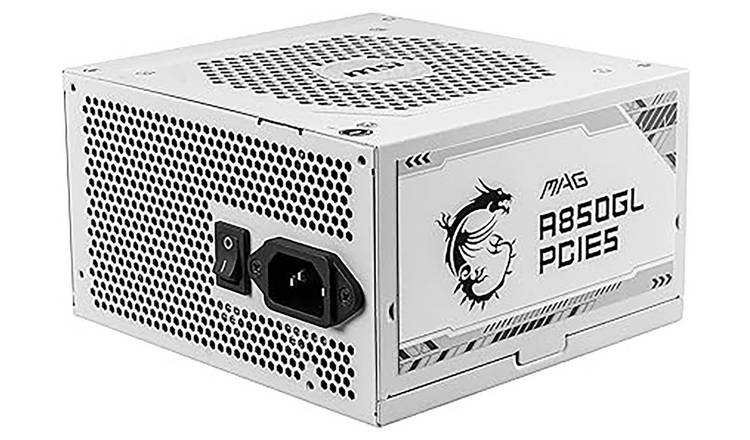

MSI A850GL 850 Watt Power Supply

The MSI A850GL delivers 850 watts of reliable power with full ATX 3.0 compatibility, designed specifically for modern high-performance builds running NVIDIA GeForce RTX 40 Series graphics cards. Its native PCIe 5.0 connector handles power excursions up to 2x total system power and 3x GPU power, so those demanding components get the clean, stable power they need without interruption. The 80 Plus Gold rating ensures high efficiency at 90%, and the fully modular design with flat cables makes installation straightforward whilst keeping your build tidy.

Inside, LLC full bridge topology with a DC-DC module and active PFC provide industrial-level protection against overvoltage, overcurrent, overpower, overtemperature, short-circuit, and undervoltage. A 120mm fluid dynamic bearing fan keeps it cool and quiet. Connections include a 24-pin ATX, two 4pin EPS, four 6pin PCIe, eight SATA, and four 4-pin Molex connectors. Measuring 150mm wide, 140mm deep, and 86mm tall, it fits standard ATX cases and comes with a 7-year warranty.

Features:

• Modular.
• Cooling system: Fluid Dynamic Bearing.
• Efficiency90.
• 850.
• 80 plus gold certification.
• Over current protection.
• Over voltage protection.
• Over power protection.
• Under voltage protection.
• Short-circuit protection.
• Fully modular.

Connections:

• 4+4 pin ATX x 2.
• 6+2 pin PCIe x 4.
• 4 pin peripheral connector x 4.
• SATA x 8.
• Floppy connector x 2.
• 24 pin ATX x 1.
• 4 pin Molex x 4.

General information:

• Weight 2870g.
• Size H86, W150, D140 mm.
• EAN: 4711377115407.
• Manufacturer's 7 year guarantee.
