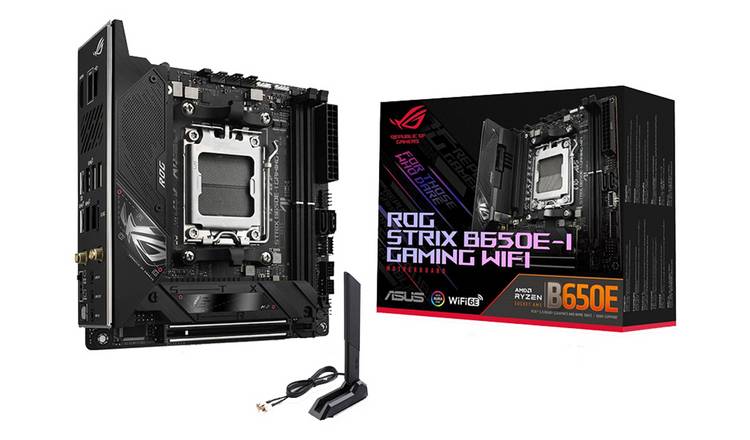

Don't be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with both DDR and PCIe 5, it's a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.
M.2 Q-LATCH The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
The mesh-like texture on the VRM cooling array and the unidirectional brush lines may seem minimalist by Strix standards, but the B650E-I is far from modest, proudly displaying a metallic ROG eye on the I/O shroud and subtle pink accents for a simple, unique flavour.
General features:
- Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync.
- Mini iTx form factor.
- AMD B650.
- LGA 1700 processor socket.
- Compatible with AMD processor.
- Memory slots:2 x DIMM, Max. 96GB.
- Memory standard: DDR5.
- Expansion slots: AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot.
- Storage slots: Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop.
- Supports Microsoft Windows 10 or later.
- Power button.
- Reset button.
- Q-flash plus button.
- Clear CMOS button.
Cooling:
- 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header.
- Pump fan.
- Fan cooling.
- Thermal sensor.
- Heatsink.
- VRM heatsinks.
- M.2 heatsinks.
Connectivity:
- 4 USB 2.0 ports.
- 2 USB type C ports.
- 1 Ethernet port.
- 1 HDMI ports.
- 1 Display port.
- Headphones jack.
- BIOS: 256 Mb Flash ROM UEFI AMI BIOS.
General information:
- Weight 1320g.
- W170, D170 mm.
- Manufacturer's 3 year guarantee.
- DDR5 memory channel.
- Supports 8000MHz memory.
- EAN: 4711081957881.
