Gigabyte B650 Gaming X AX V2 AMD ATX Motherboard
1/5

Gigabyte B650 Gaming X AX V2 AMD ATX Motherboard

582/0302

  • £152.99

Loading...
Loading...
18+, T&Cs apply, Credit subject to status.

Check stock

Check stock to see your delivery and collection options:

Sign in or register to save items to your account. Simply tap the heart again to remove.

*Argos Pay Representative ExampleRepresentative 34.9% APR (variable), 34.95% PA purchase rate (variable), £1,200 assumed credit limit.Offers and credit subject to status. 18+. UK only. Terms apply. NewDay Ltd is the lender, Argos Limited is the broker.

About this product

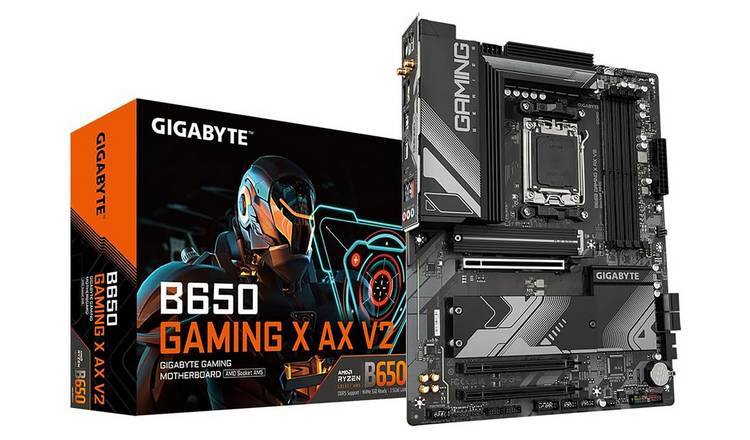

The Gigabyte B650 Gaming X AX V2 is built for AMD Ryzen 7000 and 8000 Series processors on the AM5 socket, giving you a solid foundation for a modern gaming or productivity build. This ATX motherboard centres around a direct 8 phase digital VRM solution that delivers stable power to your processor, whilst the B650 chipset unlocks PCIe connectivity and dual-channel DDR5 support for speeds up to 7800MHz across 4 DIMM slots with a maximum capacity of 192GB, so you've got plenty of room to grow.

Inside, the Gigabyte B650 Gaming X AX V2 offers one PCIe x16 slot integrated into the CPU for your graphics card, plus two PCIe 3.0 x1 slots for expansion. Storage includes 2 CPU-integrated M.2 connectors (Socket 3, M key, sizes 25110 to 2280), each with a heatsink to cool NVMe SSDs. Rear IO features HDMI, DisplayPort, Ethernet, USB Type-C, 3 USB 2.0 ports, a headphone jack, and a Q-Flash Plus button for BIOS updates without a processor. Measuring 244mm by 305mm, it includes VRM heatsinks and fan headers supporting pump and water cooling sensors, balancing features and flexibility for serious builds.

General features:

  • AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors. Unparalleled Performance: Direct 8+2+2 Phases Digital VRM Solution. Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
  • ATX form factor.
  • AMD B650.
  • Compatible with AMD processor.
  • Memory slots:4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory.
  • Memory standard: DDR5.
  • Expansion slots: PCI Express x16 slot (PCIEX16), integrated in the CPU, 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2).
  • Storage slots:1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs, .
  • Supports Microsoft Windows 10 or later.
  • Voltage sensor.
  • Power button.
  • Reset button.
  • Q-flash plus button.

Cooling:

  • Pump fan.
  • Fan cooling.
  • Fan speed sensor.
  • Thermal sensor.
  • Water cooling flow rate sensor.
  • Fan fail warning sensor.
  • Heatsink.
  • VRM heatsinks.
  • M.2 heatsinks.

Connectivity:

  • 3 USB 2.0 ports.
  • 1 USB type C ports.
  • 1 Ethernet port.
  • 1 HDMI ports.
  • 1 Display port.
  • Headphones jack.
  • BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

General information:

  • Weight 1940g.
  • W244, D305 mm.
  • Manufacturer's 3 year guarantee.
  • DDR5 memory channel.
  • Supports 7800MHz memory.
  • EAN: 4719331860073.
