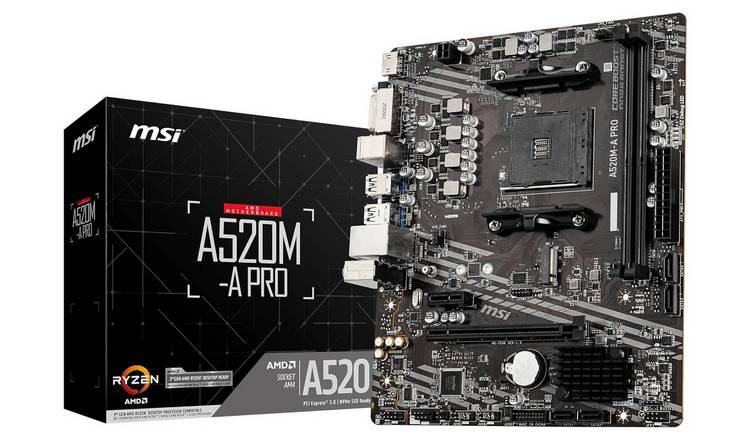

MSI AMD AM4 A520M-A Pro Motherboard

The MSI A520M-A Pro is a micro-ATX motherboard designed to deliver stable, dependable performance for professional workflows and everyday computing tasks. Built around the AMD A520 chipset with an AM4 socket, it supports 3rd Gen AMD Ryzen and 4000 G-Series desktop processors, giving you solid processing power for productivity applications and multi-tasking. With 2 DIMM slots supporting dual-channel DDR4 memory up to 4600MHz (overclocked), you've got the bandwidth needed for smooth operation across demanding software.

Storage and expansion options are straightforward. 1 M.2 Gen3 x4 slot running at PCIe Gen3 x4 speeds for fast NVMe SSDs, 4 SATA 6Gb per second ports for additional drives, and a PCIe 3.0 x1 slot for expansion cards. The rear I. O includes 2 USB 2.0 ports, 1 HDMI output, 1 Ethernet port, and a headphones jack, covering essential connectivity. Enhanced PCB design improves heat dissipation for reliable performance, and the CLICK BIOS 5 interface makes setup simple. Measuring 200mm wide by 236mm deep and weighing 1660g, it's backed by a 3-year manufacturer's guarantee.

General features:

• Micro ATX form factor.
• AMD A520 Chipset.
• AM4 processor socket.
• Compatible with AMD A4 processor.
• Memory slots:2 DIMMs, Dual Channel DDR4-4600MHz (OC).
• Memory standard: DDR4.
• Expansion slots:1x PCI-E 3.0 x1 slot.
• Storage slots:1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports.
• Supports Microsoft Windows 10 or later.

Cooling:

• An enhanced PCB design improves heat dissipation and performance reliability.

Connectivity:

• 2 USB 2.0 ports.
• 1 Ethernet port.
• 1 HDMI ports.
• Headphones jack.
• BIOS: CLICK BIOS 5.

General information:

• Weight 1660g.
• W200, D236 mm.
• Manufacturer's 3 year guarantee.
• Supports SATA hard drive.
• DDR4 memory channel.
• Supports 4600MHz memory.
• EAN: 4719072749927.
