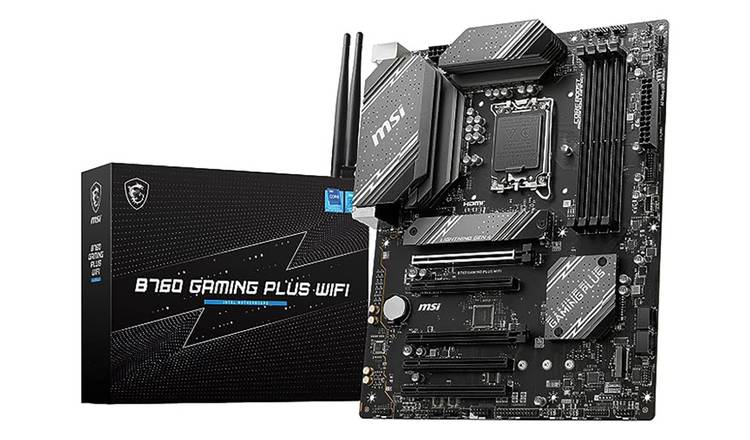

MSI 1700 Intel B760 GAMING Plus WiFi Motherboard

The MSI B760 GAMING Plus WiFi supports DDR5 memory and offers strong connectivity for Intel 13th and 12th gen builds, providing a solid base for gaming or creative rigs with expansion room. Built on the Intel B760 chipset with an LGA 1700 socket, this ATX motherboard supports DDR5 up to 6800MHz across 4 slots, with DDR5 Memory Boost and Core Boost ensuring stable performance. An extended heatsink cools the VRM, while M.2 Shield FROZR protects NVMe drives on 2 M.2 slots (PCIe Gen 4.0 x4, one SATA compatible), plus 4 SATA 6Gb per second ports for extra storage.

Connectivity includes built-in Wi-Fi 6E and Bluetooth 5.3 for wireless flexibility, plus a Realtek 2.5G LAN port for wired networking. The rear I O has 3 USB 3.1 ports, 1 USB Type-C, HDMI and DisplayPort outputs for integrated graphics, and Audio Boost for enhanced sound. There are 5 PCIe slots (2 x PCIe 4.0 x16 and 3 x PCIe 3.0 x16) for graphics cards and expansion, with Enhanced Circuit Design ensuring reliable power. Measuring 304.8mm deep and 243.84mm wide, it fits standard ATX cases with room for cable management and includes a 3-year manufacturer's guarantee.

General features:

• DDR5 Memory Boost, Core Boost, Enhanced Circuit Design.
• ATX form factor.
• Intel B760.
• Memory slots:4.
• Memory standard: DDR5.
• Expansion slots:3 x PCIe 3.0 x16, 2 x PCIe 4.0 x16.
• Storage slots:1 x PCIe Gen 4.0 x4, 1 x PCIe Gen 4.0 x4/SATA, 4 x S-ATA 6Gb/s.

Cooling:

• Extended PWM heatsink, M.2 thermal solution.
• Heatsink.
• M.2 heatsinks.

Connectivity:

• Wi-Fi 6, Bluetooth v5.3, Realtek RTL8125BG 2.5G LAN.
• 3 USB 3.1 ports.
• 1 USB type C ports.
• 1 Ethernet port.
• 1 HDMI ports.
• 1 Display port.
• Headphones jack.

General information:

• Weight 1500g.
• Size H65, W243.84, D304.8 mm.
• Manufacturer's 3 year guarantee.
• Supports SATA-II hard drive.
• Supports 6800MHz memory.
• EAN: 4711377086561.
